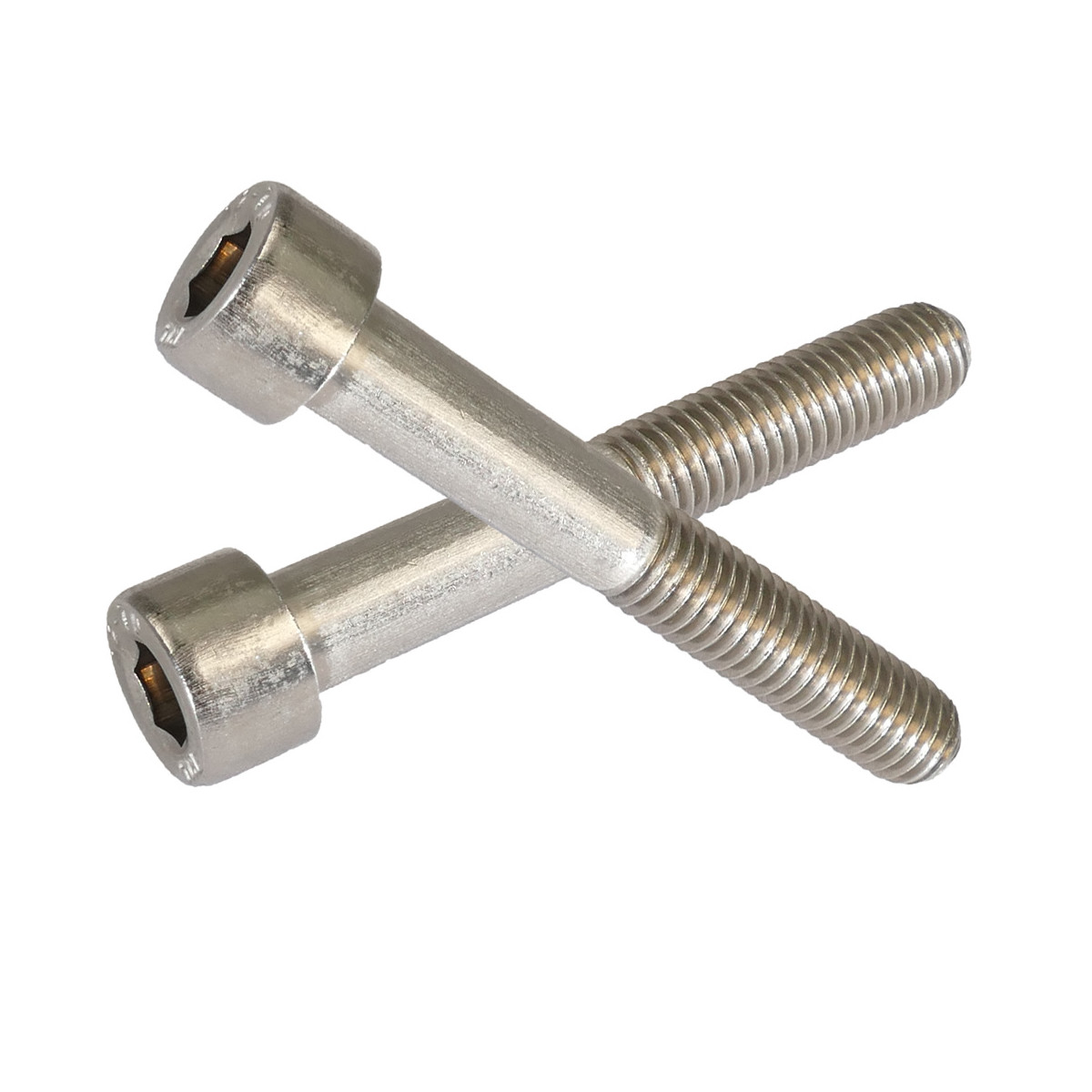

Zylinderschraube Innensechskant M10 x 110 mm
Zylinderschraube mit Innensechskant V2A
- Material Edelstahl A2
- DIN 912 (Ähnlich UNI5931 EN ISO 4762)
D (mm) | L (mm) | B (mm) | K (mm) | S (mm) | ||
M10 x 12mm | 10 | 12 | 32 | 10 | 8 | |
M10 x 16mm | 10 | 16 | 32 | 10 | 8 | |
M10 x 18mm | 10 | 18 | 32 | 10 | 8 | |
M10 x 20mm | 10 | 20 | 32 | 10 | 8 | |
M10 x 22mm | 10 | 22 | 32 | 10 | 8 | |
M10 x 25mm | 10 | 25 | 32 | 10 | 8 | |
M10 x 30mm | 10 | 30 | 32 | 10 | 8 | |
M10 x 35mm | 10 | 35 | 32 | 10 | 8 | |
M10 x 40mm | 10 | 40 | 32 | 10 | 8 | |
M10 x 45mm | 10 | 45 | 32 | 10 | 8 | |
M10 x 50mm | 10 | 50 | 32 | 10 | 8 | |
M10 x 55mm | 10 | 55 | 32 | 10 | 8 | |
M10 x 60mm | 10 | 60 | 32 | 10 | 8 | |
M10 x 65mm | 10 | 65 | 32 | 10 | 8 | |
M10 x 70mm | 10 | 70 | 32 | 10 | 8 | |
M10 x 75mm | 10 | 75 | 32 | 10 | 8 | |
M10 x 80mm | 10 | 80 | 32 | 10 | 8 | |
M10 x 85mm | 10 | 85 | 32 | 10 | 8 | |
M10 x 90mm | 10 | 90 | 32 | 10 | 8 | |
M10 x 100mm | 10 | 100 | 32 | 10 | 8 | |
M10 x 110mm | 10 | 110 | 32 | 10 | 8 | |
M10 x 120mm | 10 | 120 | 32 | 10 | 8 |
